BOX DESAL SWRO · FACTORY-INTEGRATED SEAWATER RO
SWRO720
720m³/day
A source-confirmed containerized platform with model-specific feed, membrane, pressure-vessel, high-pressure, energy-recovery, filtration and CIP references.
DELIVERY FORMAT2 × 40 ft
BOX DESAL SWRO 720500–1200 FAMILY ILLUSTRATION · MODEL PHOTO PENDING
REFERENCE PRODUCT30m³/h48 membranes12–18 weeks
720m³/dayNOMINAL PRODUCT WATER
1,800m³/dayREFERENCE FEED FLOW
48× 8 × 40SWRO MEMBRANES
8 × 1,200 psiPRESSURE VESSELS
40% nominalREFERENCE RECOVERY
MODEL-SPECIFIC REFERENCE DATA
Confirmed equipment basis for concept development.
These values belong specifically to BOX DESAL SWRO 720. They support preliminary comparison; the final equipment schedule is released only after the water and project duty are approved.
Start engineering reviewREFERENCE PLANT SCOPE
Integrated treatment inside the delivery boundary.
The model platform combines the main process sections required for a maintainable containerized seawater plant.
Request detailed scopeFeed & filtration
Duty/standby feed pumping, multimedia filtration and cartridge filtration.
Chemical conditioning
SMBS and antiscalant dosing with tank, level and control references.
High-pressure SWRO
48 membranes in 8 pressure vessels with a 30 m³/h at 58–62 bar HP section.
Energy recovery
Reference operating point: 45 m³/h at 58–62 bar.
CIP & automation
50 m³/h · 1,000 L CIP reference with PLC/HMI, instruments, alarms and flushing logic.
Container services
Interior lining, air conditioning, internal piping, cabling and equipment access.
DOCUMENTATION STATUS
500–1200 family visuals and drawing status

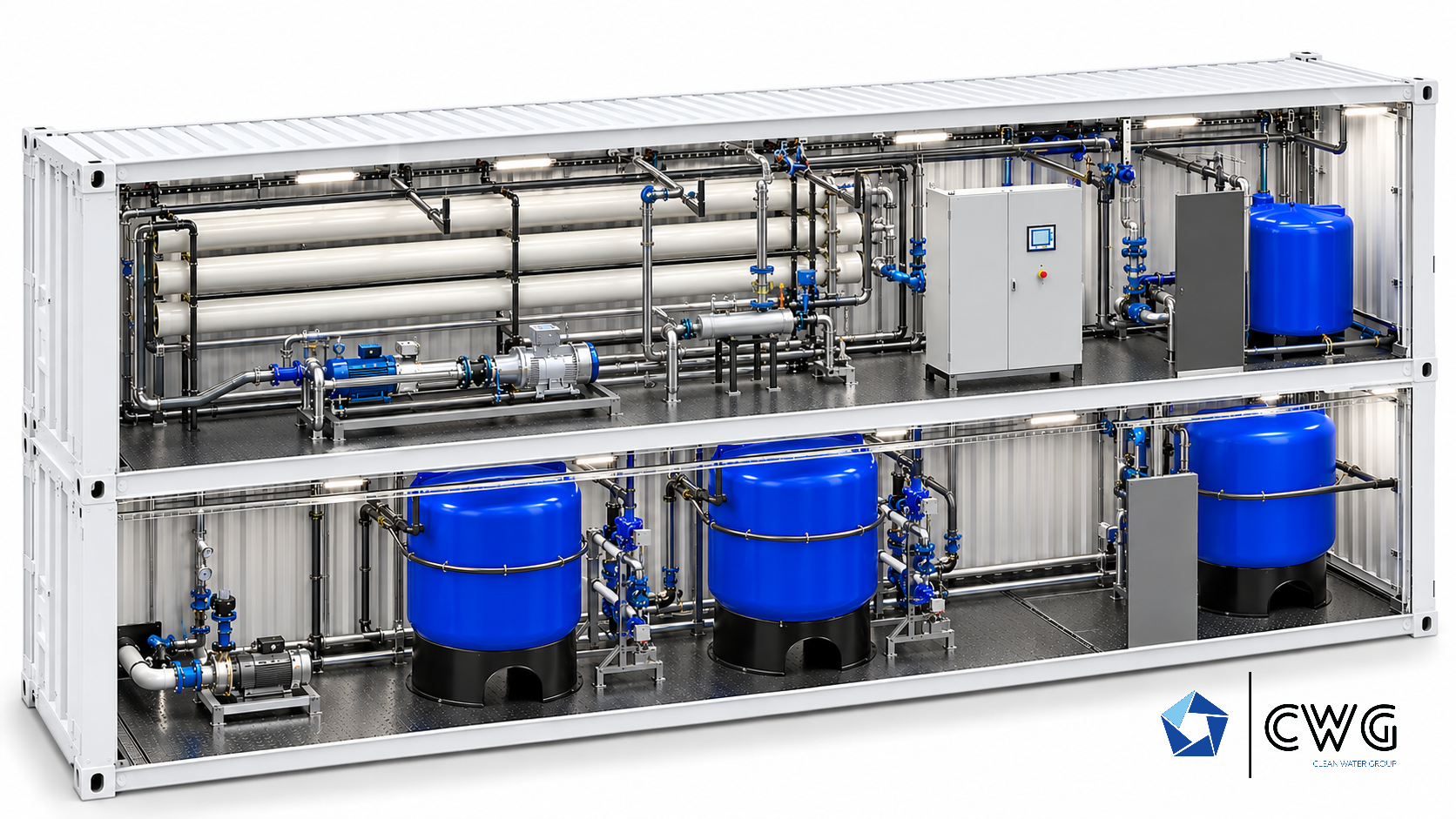

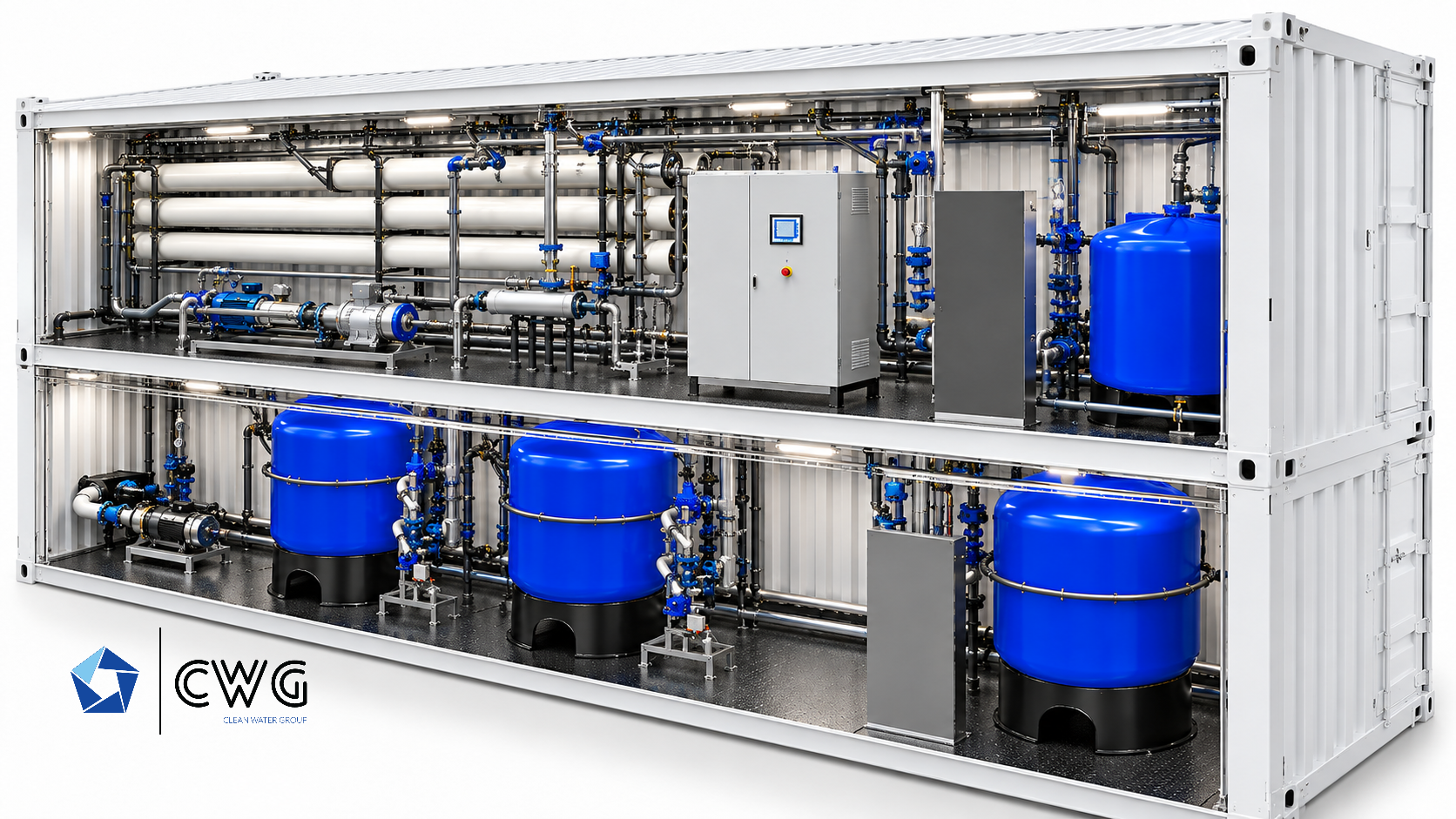

The two supplied visuals illustrate the 500–1,200 m³/day family. The supplied drawing is marked 50–100 m³/day and depicts two stacked 20-foot containers. Those values conflict with this model’s stated capacity and two 40-foot delivery arrangement. It is displayed only as a visual concept and must not be used as this model’s technical specification. An approved model-specific GA, P&ID, foundation, electrical and connection drawings remain required.
CONTAINER ARCHITECTURE
2 × 40-foot reference arrangement
The process is divided across two containers. Interconnecting pipework, cabling, site erection scope and exact battery limits must be confirmed before release.
DELIVERY2 × 40 ftMULTIMEDIA FILTRATION2 × 63 × 86 FRPCIP SYSTEM50 m³/h · 1,000 LCONTAINER SERVICESInterior lining · air conditioning · internal utilities
ENGINEERING & COMMERCIAL BOUNDARY
Reference platform, not an automatic guarantee.
Actual seawater, temperature, intake, final-water duty and site conditions govern the approved plant. The approved net equipment price is shown above. Transport, site work and final technical scope are confirmed in the project proposal.
Current full seawater analysisSeasonal temperature and intake conditionsGuaranteed capacity and membrane projectionRecovery, pressure and energy consumptionExact wetted-material gradesEnergy-recovery technology and efficiencyBattery limits and external interfacesFinal CWG commercial proposal
BOX DESAL SWRO 720 FAQ
Answers before project configuration.
01What is the reference capacity of BOX DESAL SWRO 720?
The reference platform is rated at 720 m³/day or 30 m³/h. Guaranteed production requires the actual seawater analysis, temperature and an approved membrane projection.
02How is BOX DESAL SWRO 720 containerized?
The reference delivery uses 2 × 40-foot containers. Final access, segregation, ventilation, drainage and external battery limits are verified before layout approval.
03What seawater basis is used?
The current reference basis is 42,000–45,000 mg/L feed TDS, 40% nominal recovery and a 500 mg/L permeate target. These are preliminary design values, not universal guarantees.
04Is energy recovery included?
The reference energy-recovery section is 45 m³/h at 58–62 bar. Technology, efficiency and final operating point require project confirmation.
05What does the displayed price include?
The approved net equipment price covers a packed product at CWG warehouse, Braće Radića 132, Mraclin, Croatia (EXW). Transport and site work are quoted separately. Delivery is estimated at 12–18 weeks, subject to confirmation after order.
READY TO CONFIGURE BOX DESAL SWRO 720?
Send the seawater analysis and delivery conditions.
CWG will verify capacity, recovery, membrane projection, pretreatment, utilities, layout and final commercial scope.
